Thermal Printing models



Efficient production

  • SP8600 can automatically mark and cut various types of tubes and produce different kinds of cable markers effectively, as you need.
  • Marking speed is increased by about 10 percent from the previous model.

PC-link function

  • USB flash drive can be used to store marking data and transfer the data to or from SP8600.
  • Bundled software “CTKPCMS for Windows” enables you
    Manage multiple marker list data for different projects, etc. efficiently.
    Utilize Windows’ TrueType fonts in your PC for marking native characters, etc.
    Print Code 39 barcodes.

Stand-alone use

  • Optional keyboard allows stand-alone operation through menu screen on the LCD.

The following video is introducing operation of Hotmarker SP-series by using an older model.
The basic functions of the latest model are identical with those shown in the video.

Basic specification

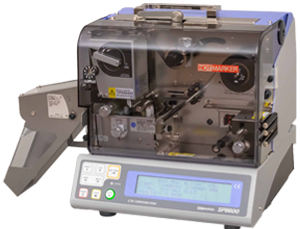

Model SP8600
Applications Tubes Outside Diameter 2.0 - 28.0 mm
Laid-flat width: 3.2 - 45.0 mm
Marker Labels (adhesive labels for device identifications)
Marker Plates (terminal ID boards)
Dimensions W432 x D280 x H302 mm
Weight 12.0 kgs
